How To Draw A Tree More Beautifully In Networkx

If I make a tree using networkx and draw it, the nodes overlap. Is there a way to draw it so there is no overlap? import matplotlib.pyplot as plt import networkx as nx T = nx.gener

Solution 1:

I am no expert in this, but here is code that uses the pydot library and its graph_viz dependency. These libraries come with Anaconda Python but are not installed by default, so first do this from the command prompt:

conda install pydot

Then here is code adapted from Circular Tree.

import matplotlib.pyplotas plt
import networkx as nx
import pydot
from networkx.drawing.nx_pydotimport graphviz_layout

T = nx.balanced_tree(2, 5)

pos = graphviz_layout(T, prog="twopi")
nx.draw(T, pos)
plt.show()

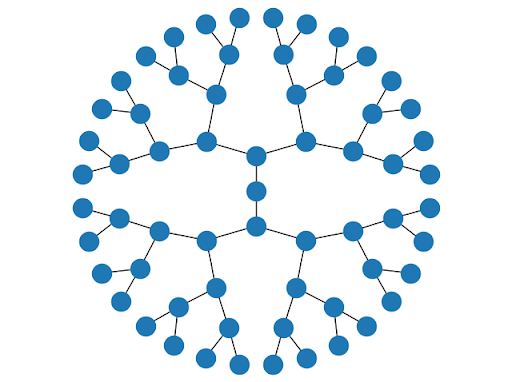

If you adjust the window to make it square, the result is

Or, if you prefer a top-down tree, you could replace the string "twopi" in that code with "dot", and if you make the resulting window wider you get

Also, if you use the string "circo" instead and make the window wider, you get

Solution 2:

If you want to do this without additional libraries, look at this answer, which shows a way to get a hierarchical tree layout or a circular layout purely in networkx:

https://stackoverflow.com/a/29597209/2966723

I'm planning to add a slightly modified version of this to networkx sometime soon.
